You've spent an hour sanding. It appears to be a smooth surface. After applying the stain, you observe uneven areas, swirl marks, and cross-grain scratches that were undetectable only five minutes previously. Does that sound familiar?
You're not alone if you've ever had a finish highlight imperfections that your eye missed before application. It's one of the most prevalent disappointments in woodworking, and it costs money, effort, and resources. Sanding more is not the solution. It's about seeing better.
Every step of appropriate wood sanding is covered in this expert checklist, which also explains how an LED inspection light may show surface flaws that natural light just cannot. Whether you sand on the weekends or own a cabinet shop, this guide will help you do tasks more quickly and produce outcomes you can be proud of.
Why Proper Sanding Is More Than Just "Going Through the Grits"
The majority of woodworkers are familiar with the fundamentals: start coarse, work finer, and don't omit grits. However, inspection is a stage that nearly everyone overlooks. Specifically, using the appropriate light to examine the surface in between each step.
You're effectively working in the dark if you don't have a dedicated LED inspection light. Light is directed directly down from overhead shop lights. The amount of natural light coming from windows changes hourly. The low-profile flaws that only appear in raking, low-angle light, such as micro-scratches, elevated grain, and missed areas, are not visible under either.
This is why every serious sanding station should have a specially designed LED inspection light bar.
The Pro Sanding Checklist
Step 1 — Assess the Raw Surface
Examine the unfinished surface under your LED inspection light before applying sandpaper to any wood. Before sanding, experts use a technique known as low-angle lighting woodworking, which involves holding the light low and parallel to the surface to capture mill markings, dents, and tool chatter. Use a pencil to mark problem areas.
Step 2 — Choose Your Starting Grit
Adapt the initial grit to the wood's state. Start with 60–80 grit for rough, unplaned stock. Start with 100–120 grit for machine-surfaced stock. Start with 150 grit for pre-sanded stock or veneer. The scratches caused by coarser grits must be completely erased before moving on to finer grits, thus never skip more than one grit step.
Step 3 — Sand With the Grain (Always)
Cross-grain scratches are one of the main reasons finishes look poor. At each stage, sand parallel to the wood grain. Make overlapping, regular passes. Never leave your sander in one place; always keep it moving and flat.
Step 4 — Inspect After Every Grit Change
The majority of individuals omit this step. Once each grit is finished, clean the surface and use your LED inspection light to examine it. Light should be angled low so that it skims the surface rather than illuminating it from above.
Any scratches left over from the prior grit will be easily noticeable. This is the most practical method for surface defect detection. Until the surface is clean, do not proceed to the next grit.
Step 5 — Raise the Grain Before Your Final Pass
Lightly moisten the surface with water or a damp towel prior to your final sanding step (usually 180–220 grit) and let it fully dry. Wood fibers that would ordinarily rise during finishing are raised as a result. Use your last grit to gently sand them back down.
Step 6 — Final Inspection Under the LED Inspection Light
This is the quality-control checkpoint. Hold your LED inspection light bar low and near the surface, and dim the sanding station lighting if possible. Slowly move it across the entire workpiece.
There shouldn't be any elevated grain, swirls, or scratches on the surface. If you notice something, repair it right away. Defects are not concealed by finishing over them—they are locked in.
Step 7 — Clean Before You Finish
Use compressed air to remove all the dust. Clean with a tack cloth. Examine under your LED inspection light one last time. The surface is only prepared for stain, sealer, or topcoat when it appears perfect in that light.
The Right LED Inspection Light Bar for Your Shop
SurfPrep's LED Inspection Light Bars are trusted by production cabinet shops and small refinishing businesses across North America — and for good reason. The technology is purpose-built for woodworking inspection, not adapted from another application.

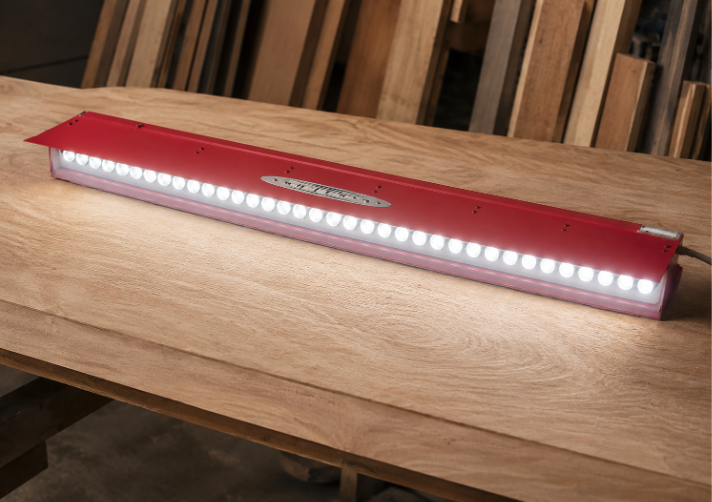

40" LED Inspection Light Bar
Built for large panel work and high-volume production environments, the 40” LED inspection light bar covers more surface in a single pass — making it the go-to choice for cabinet shops and OEM finishing lines across North America.
- Light temperature: 5,500–6,000K near-daylight output for accurate color rendition
- Defect visibility: 10X more visible surface defects vs. standard shop lighting
- LED lifespan: 30,000 to 50,000 hours per LED
- Power consumption: 0–60 watts
- Build: Shock and vibration resistant for active shop environments
- Heat output: Very low heat per lumen — comfortable for extended operator use
- Beam quality: Perfectly smooth beam with angled lenses that skim the sanding surface
The 40” bar. More coverage, fewer surprises. Shop Now →
24" LED Inspection Light Bar
Compact without compromise, the 24” LED inspection light bar is ideal for finishing benches, smaller workpieces, and shops where space is tight. Same defect-revealing performance — right-sized for precision work.
- Light temperature: 5,500–6,000K near-daylight output for accurate color rendition
- Defect visibility: 10X more visible surface defects vs. standard shop lighting
- LED lifespan: 30,000 to 50,000 hours per LED
- Power consumption: 0–60 watts
- Build: Shock and vibration resistant for active shop environments
- Heat output: Very low heat per lumen — comfortable for extended operator use
- Beam quality: Perfectly smooth beam with angled lenses that skim the sanding surface
Tight bench. Tight results. Shop Now →
Both models use the same proven LED inspection light technology. Choose based on the size of your typical workpiece and your sanding station lighting setup.
Stop guessing. Start seeing. Upgrade Your Sanding Station →
Final Thoughts
Superb sanding is the first step toward superb finishing, and clear vision is the first step toward great sanding. An LED inspection light just ensures that no flaws go overlooked; it doesn't alter your method. Incorporate it into your process, and each thing you produce will demonstrate the difference.
Frequently Asked Questions
1. What is an LED inspection light, and why do I need one for sanding?
The goal of an LED inspection light is to highlight surface flaws that are missed by conventional lighting. It skims across the wood surface at a low angle, making uneven areas, swirl marks, and scratches ten times more noticeable.
2. Can't I just use a regular work light or a flashlight?
You can, but the outcomes won't always be consistent. Low-profile flaws are not visible since standard work lamps cast light from above. The color temperature and beam quality of flashlights varies. The beam angle, color temperature (5,500–6,000K), and smooth beam quality of an LED inspection light bar are all specifically designed for surface defect detection.
3. Where should I position my LED inspection light during sanding?
Professional finishers employ the low-angle lighting woodworking technique, which involves holding or mounting the LED inspection light low and almost parallel to the work area. Surface flaws are more noticeable at lower angles.
4. Which size inspection light bar should I choose — 24" or 40"?
The 40" LED inspection light bar is ideal for large cabinet panels, tabletops, and production shop settings. The 24" LED inspection light bar is perfect for smaller workpieces, finishing benches, and shops with tighter sanding station layouts.
5. How long will my LED inspection light last?
The LED inspection light bars from SurfPrep have ratings ranging from 30,000 to 50,000 hours. That means years of regular use before replacement is needed, even in a busy woodworking environment.
